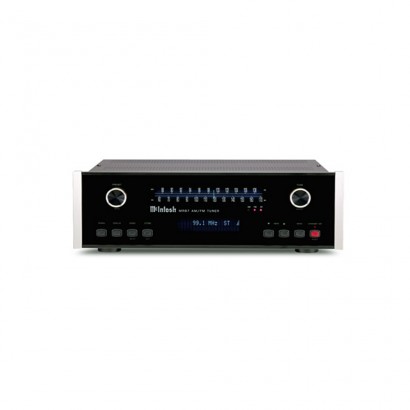

Mcintosh MR87 튜너
FM SECTION
Tuning Range
87.5MHz – 108.0MHz (Europe)
87.9MHz – 107.9MHz (USA)
76MHz – 90MHz (Japan)
Antenna Input: 75 Ohms, Type “F” Coax connector
Useable Sensitivity: 2.2uV (18.1dBf)
50dB Quieting Sensitivity: 1.5uV (14.8dBf)
Signal To Noise Ratio: Mono: 70dB / Stereo: 68dB
Frequency Response: ±1dB 20 to 15,000Hz
Harmonic Distortion: Mono: 0.4% / Stereo: 0.8%
Channel Selectivity
60dB Adjacent Channel
66dB Alternate Channel
Stereo Separation: 38dB
AM SECTION
Tuning Range
522kHz – 1602kHz (Europe)
530kHz – 1710kHz (USA)
522kHz – 1611kHz (Japan)
Antenna Input: RAA2 (supplied), Type “RJ45” connector
Sensitivity: 350uV/m
Signal To Noise Ratio: 50dB
Frequency Response: 0dB, -6dB 50Hz to 3,000Hz
Harmonic Distortion: 0.5%
Selectivity: 45 dB Adjacent Channel
GENERAL SPECIFICATIONS
Rated Output: 1Vms Unbalanced, 2Vms Balanced
Output Impedance: 100 ohms Unbalanced or Balanced
Digital Output
Optical: -15dbm to -21dbm (PCM) / Coaxial: 0.5Vp-p/75 ohm (PCM)
Sampling Frequency: 48kHz (PCM)
AM Antenna Input
Balanced, RJ45 connector (for use only with supplied McIntosh RAA2 Remote AM Antenna)
RAA2 Remote AM Antenna Overall Dimensions
Width is 6 inches (15.24cm)
Height is 2-1/2 inches (6.35cm)
Depth is 1-1/2 inches (3.81cm)
Power Requirements
100V, 110V, 120V, 220V, 230V and 240V ~ 50/60Hz, 30 watts. Standby, less than 0.5 watt
Note: Refer to the rear panel of the MR87 for the correct voltage.
Overall Dimensions
Width is 17-1/2 inches (44.45cm)
Height is 6 inches (15.24cm) including feet
Depth is 18 inches (45.72cm) including the Front panel, Knobs and Cables
Weight
25.5 pounds (11.6 kg) net, 40 pounds (18.1 kg) in shipping carton
Shipping Carton Dimensions
Width is 26-1/2 inches (67.3cm)
Depth is 24-1/4 inches (62.2cm)
Height is 11-3/4 inches (29.9cm)In order to ensure the highest level of customer satisfaction, “new” McIntosh products may only be purchased over-the-counter or delivered and installed by an Authorized McIntosh Dealer.
McIntosh products that are purchased over the Internet, by phone or mail order are presumed to be “used” and do not qualify for any McIntosh Warranty. McIntosh does not warrant, in any way, products that are purchased from anyone who is not an Authorized Dealer or products that have had their serial number altered or defaced.
| 품명 | MR87 |
|---|---|
| 모델명 | MR87 |
| 법에 의한 인증·허가 등을 받았음을 확인할 수 있는 경우 그에 대한 사항 | 상품페이지 참고 |
| 제조국 또는 원산지 | 미국 |
| 제조자 | Mcintosh |
| A/S 책임자와 전화번호 또는 소비자상담 관련 전화번호 | 02-335-0006 |
출력도 부족함 없고 소리도 밝고 시원하며 저음부는 양감이 적고 응답속도가 빨라 뭉개짐 없이 잘 표현되어줍니다. 어떤 스피커를 앞으로 매칭할지 고민입니다. 취향만 잘 맞다면 이 가격에 진정한 가성비입니다. 원래 오디오가 모든 수치 값을 후하게 주고 평가도 잘 해주는 편이라 가성비라는 말을 아끼지만 이건 정말 좋네요.
